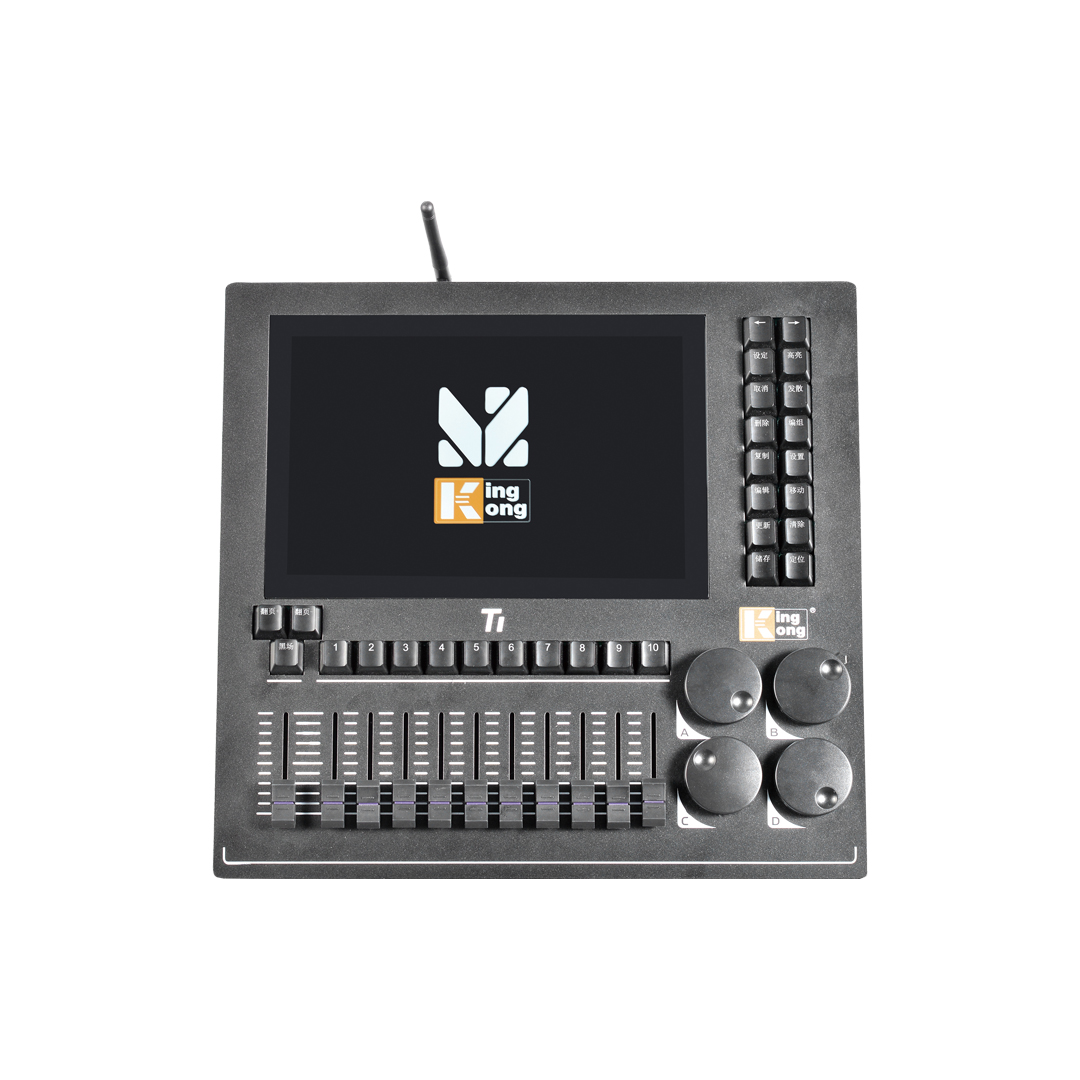

Little King Lighting Console
DF-BATON-T1

Technical Specifications:
This compact and user-friendly console features a classic 1024-key layout and is designed as the ideal first touchscreen console for lighting designers.
The operating system is a fully Chinese-language system custom-developed based on the Linux Ubuntu desktop environment. It offers enhanced stability, is virus-resistant, and supports language switching between Chinese, English, Portuguese, Vietnamese, Traditional Chinese, and more. The system is continuously optimized to align with Chinese users’ operational habits.
The motherboard utilizes industrial-grade components, with the memory, CPU, and hard drive soldered directly onto the board for exceptional stability
4GB RAM, quad-core CPU, 10.1-inch HD capacitive touchscreen
2 optically isolated DMX512 output ports, compliant with DMX512/1990 standards, with a fixed physical output of 1,024 DMX512 control channels. Can be expanded to 8 output ports via ART-NET, supporting a total of 4,096 DMX512 channels.
All fader tracks on the console are smooth, stable, and feature damping; data is accurate with no latency or value jumps
All hardware is brand-new and genuine, eliminating the widespread practice of passing off used equipment as new
2 USB ports for reading or saving console data via a USB flash drive
4 encoder knobs for adjusting fixture parameters
1 HD HDMI port for high-definition screen output
1 SD card slot for data storage and expansion
1 100Mbps Ethernet port supporting high-speed TCP/IP protocol transmission; compatible with various central control systems; supports control code triggering via UDP, TCP, and RS-485; supports real-time output to lighting simulator software and can be used for practice and simulation programming
Equipped with a Wi-Fi receiver for wireless connectivity
Features 10 scene faders capable of running 10 single-step scenes simultaneously, plus 1 blackout fader for instant blackout
Supports dual-console linked control; if one console fails, the other takes over instantly without delay
Supports wireless or wired control via mobile or tablet apps and wall panels
APP features allow for the categorization and sorting of edited scenes and shows; control sequences can be displayed directly on a mobile device for convenient on-site operation
Supports setting screen lock and startup passwords to protect console data
Supports RDM for remote fixture identification or address code modification
Vector bitmap functionality simulates on-site fixture layout, enabling more precise and convenient control
Pre- and post-show timing materials enhance efficiency during both programming and live operations
Graphic grouping for richer programming effects, with the ability to import and export project files
Six fan-shaped modes available, with fan effects customizable via the effects dialog box
Special dialog box allows for quick color selection via a color palette
Segment algorithm enables flexible segmented operation of attributes, timing, graphics, and more
Customizable naming or labeling for fixture groups, materials, scenes, etc., for easy searching and recall
One-click light show with a built-in music player, facilitating show creation and rehearsal recording
XML-format fixture library with an intuitive editor; files can be edited directly on the console or created on a computer and imported
Stores up to 900 scenes, with unlimited steps for multi-step scenes
Light groups are divided into 3 categories, with a total capacity of 300 groups, capable of controlling 1,600 lights
Media is divided into 10 categories, with a total capacity of 1
