Lighting control devices

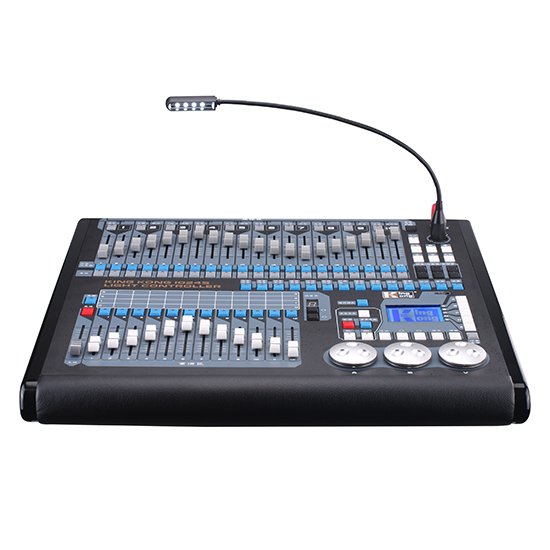

Jingang Control Console
DF-KK1024S

Technical Specifications:
Compliant with DMX512/1990 standards, supporting up to 1024 DMX control channels and two optically isolated signal outputs.
Capable of controlling up to 120 moving head lights or 120 dimming channels.
Supports Pearl Light Library (R20 format), and allows users to program their own light libraries directly on the console.
Backlit LCD display with an innovative interface that switches between Chinese and English. Panel language is selectable.
Built-in graphic pattern generator with 227 preset patterns, enabling users to control moving head lights with graphic patterns such as circles, spirals, rainbows, chases, and more.
Graphic parameters (such as amplitude, speed, interval, wave, and direction) can be set independently, making it easier and faster to create the desired shapes and scenes.
Each scene can store up to 5 graphics; up to 10 graphics can run simultaneously.
Features a program recording function, capable of storing up to 100 programs, ensuring a hassle-free light show demonstration. · Built-in timecode and external MIDI trigger functions allow you to easily create dazzling light shows with one-touch audio-visual synchronization. · Scenes support overlapping functionality, and graphics include width parameters for faster programming. Advanced grouping features are available. 3
Up to 100 effects can be stored; effects can be shared or used independently as desired.
There are four effect storage modes, offering flexible and convenient storage and recall.
Can store 120 replay scenes for both multi-step and single-step scenes.
Each multi-step scene can store up to 600 single steps.
Can output and run 12 replay scenes simultaneously.
Equipped with 12 master faders. Compatible with both button point control and fader master control,
supporting functions such as re-assigning channel addresses, vertical/horizontal swapping, and channel output reversal.
Data is retained in the event of shutdown or sudden power loss.
Console data can be backed up to a USB drive and reimported for use; data is shareable between consoles of the same model.
Supports remote software updates, allowing new features to be added anytime, anywhere.
Features pre-programming capabilities for offline programming in advance, saving time and effort.
Preset faders allow for control of moving head light attributes, making attribute control more convenient and efficient.
Supports instant blackout and scene interlocking.
Professional gooseneck work light, suitable for indoor and outdoor performances. (Optional)
Product Dimensions: 510 x 460 x 120 mm
Power Supply: AC 100–240 V / 50–60 Hz
