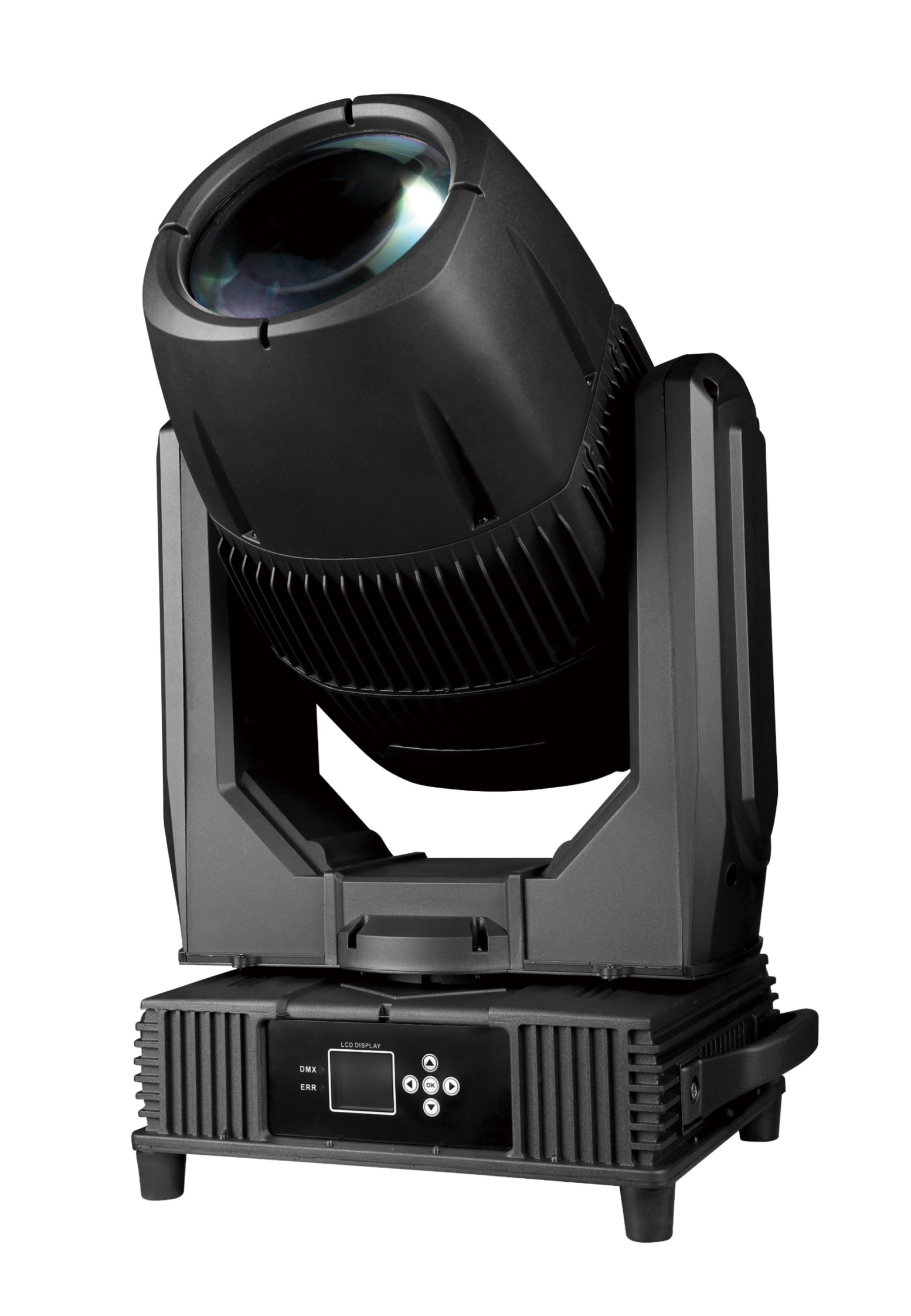

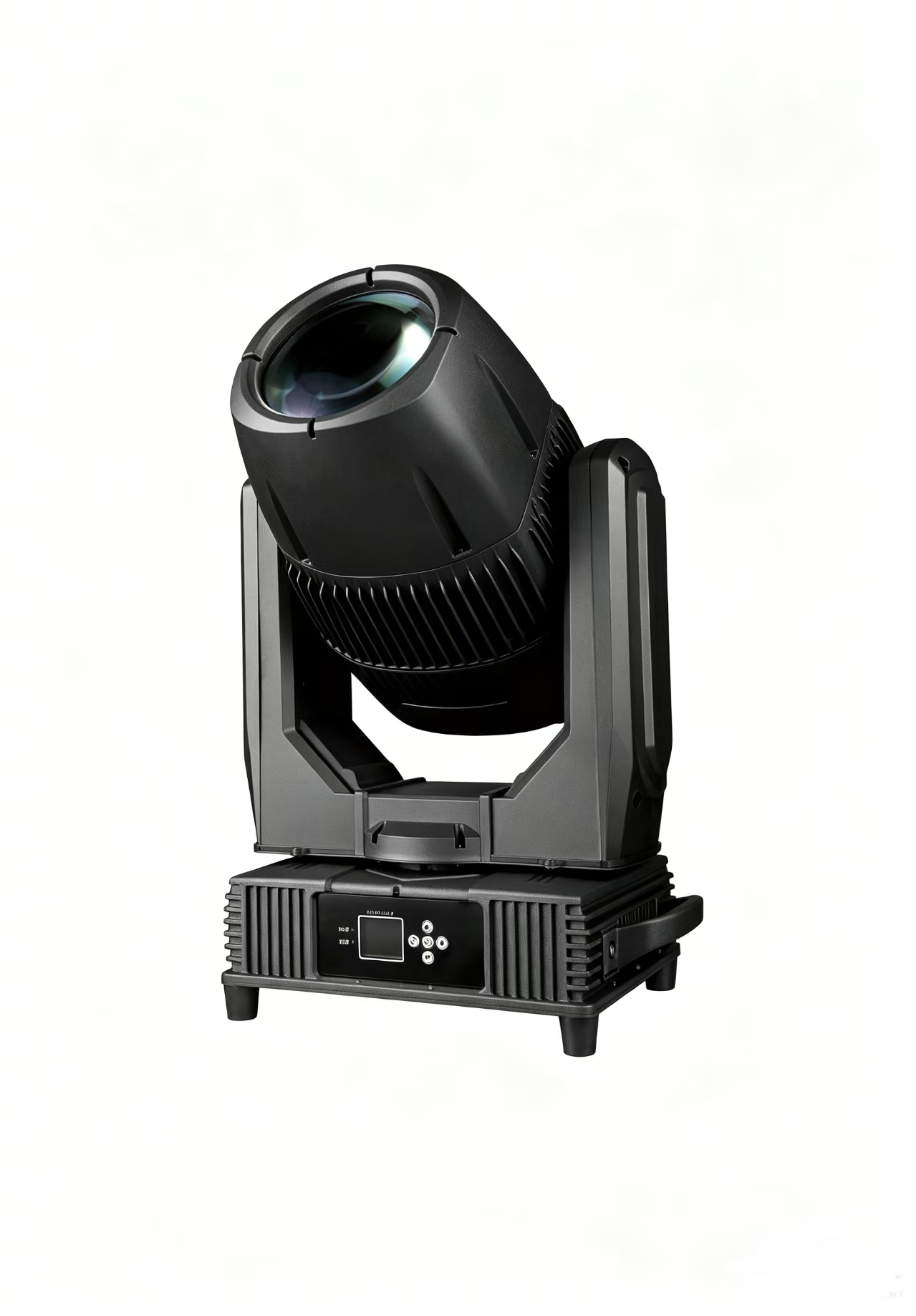

420W Outdoor Waterproof 3-in-1
DF-M420BSW-IP
Technical Specifications:
Wide Voltage: AC 90V–235V, 50–60 Hz
Wide Voltage Power Supply: 650W
Imported Light Source System: 421W (Osram)
Color Temperature: 8000K
Color System: Color Wheel: 11 colors + white
Pattern System: Pattern Wheel: 13 fixed patterns + 1 white
Focusing System: Electronic focusing
Strobing: Dual-motor independent strobing effect, 0.5–20 times/second, adjustable speed
Rotating Pattern Wheel: 9+1
Motors: XY-axis three-phase motors ensure high stability at both high and low speeds and precise positioning!
Dimming Curve: 0%-100% linear dimming, smooth and flicker-free
Beam Angle: 2-40°
Dual Channels: 16-channel or 20-channel
Lens Diameter: 135mm
Waterproof Rating: IP66
Control Mode 1: DMX 512, Standalone, Master/Slave Standalone, RDM functionality, and support for large-scale controllers
to remotely configure address codes.
Prism System: 8-prism (prism configuration can be customized per customer requirements).
Display: LCD screen, adaptable to various mounting positions, rotates 180°
Pan/Tilt: Utilizes high-precision three-phase motors for accurate positioning, smooth operation, and automatic alignment correction
Pan: 540° rotation, 8/16-bit resolution, with fine-tuning
Tilt: 270° rotation, 8/16-bit resolution, with fine-tuning.
Cooling System: Cast aluminum + plastic housing, providing comprehensive heat dissipation for the entire fixture.
Mounting Options: Upright / Inverted
Fixture Dimensions: 43 x 26 x 63 cm; Carton Dimensions: 41 x 49 x 77 cm; Net Weight: 26 kg; Gross Weight: 32 kg
A Masterpiece of Craftsmanship: Premium design, immense power, and a powerful beam. This waterproof floodlight meets the highest standards in optics, structure, and appearance. It utilizes state-of-the-art high-brightness light sources, advanced optical technology, and meticulous industrial design to ensure the perfect realization of your lighting design.
