Computer moving head light

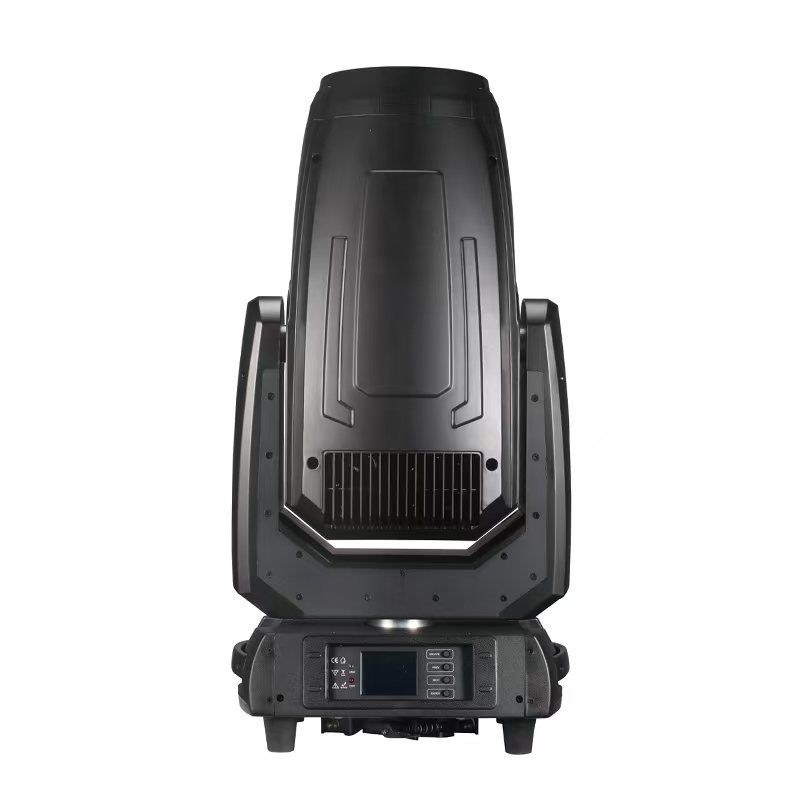

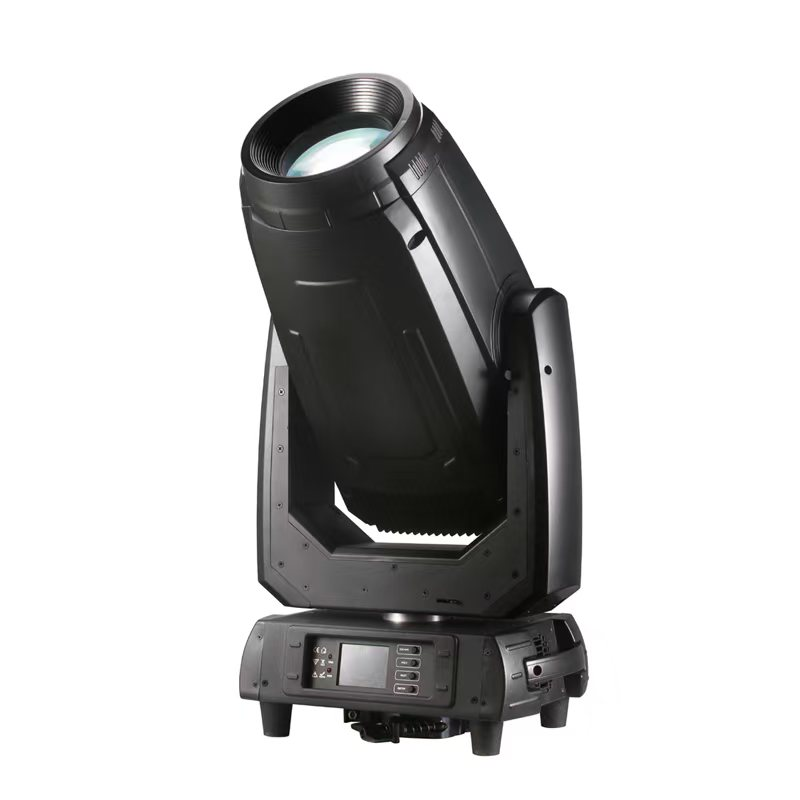

1000W LED Moving Head Cutting Light
DF-LM1000 PROFIL

Technical Specifications:
Rated Voltage: AC 100–240V, 50/60Hz
Power: 1200W
Light Source: 1000W LED Module
Light Source Lifespan: 20,000 hours
Color Temperature: 7500K, CRI: 70 (80/90 with CRI insert)
Focus: Utilizes high-precision glass lenses, 5.5°–50° linear high-speed zoom, with uniform and consistent beam across the entire range
A comprehensive graphic cutting system capable of generating geometric shapes of various sizes and forms; graphics can be rotated at any angle between 0° and 120°.
Rotating Patterns: 1 rotating pattern wheel with 7 selectable pattern discs, featuring variable-speed shimmering and bidirectional rotation; pattern rotation supports 16-bit precision fine-tuning.
Fixed Patterns: 1 fixed pattern wheel with 9 selectable pattern discs, featuring variable-speed shimmering and bidirectional rotation.
Effect Wheel: 1 dynamic effect wheel capable of simulating dynamic effects such as flames and flowing water.
Color Discs: 2 color filter discs with 10 filter options, capable of bidirectional rainbow effects, half-color, and linear adjustment.
C M Y: Stepless color mixing
C T O: Linear color temperature adjustment
Diaphragm: 5–100% linear adjustment, with multiple macro effect functions
Stroboscope: 1–25 Hz high-speed electronic strobing, featuring pulse strobing and synchronous/asynchronous strobing effects
Dimming: 0–100% linear dimming
Prism: 1 hexagonal prism with bidirectional variable-speed rotation
Fog: 2 independent fog mirrors
Display: 2.8-inch color touchscreen, freely switchable between Chinese and English
Pan: 540° horizontal rotation (16-bit precision fine-tuning), with automatic error correction
Vertical: 270° vertical rotation (16-bit precision fine-tuning), with automatic error correction
Control Modes: DMX512, RDM, Standalone, Sound Control, Scene, Master/Slave modes; optional wireless transmission
Control Channels: Channels 42/43/49/50
Protection Rating: IP20
Net Weight: 26 kg
Dimensions: 38 x 24 x 74 cm
Gross Weight: 30 kg (1 unit per carton) / 94 kg (2 units per flight case)
Packaging Dimensions: 64 x 48.5 x 68.5 cm (1 unit per carton)
96 x 45 x 99 cm (2 units per flight case)

Details
